Crating

Information:

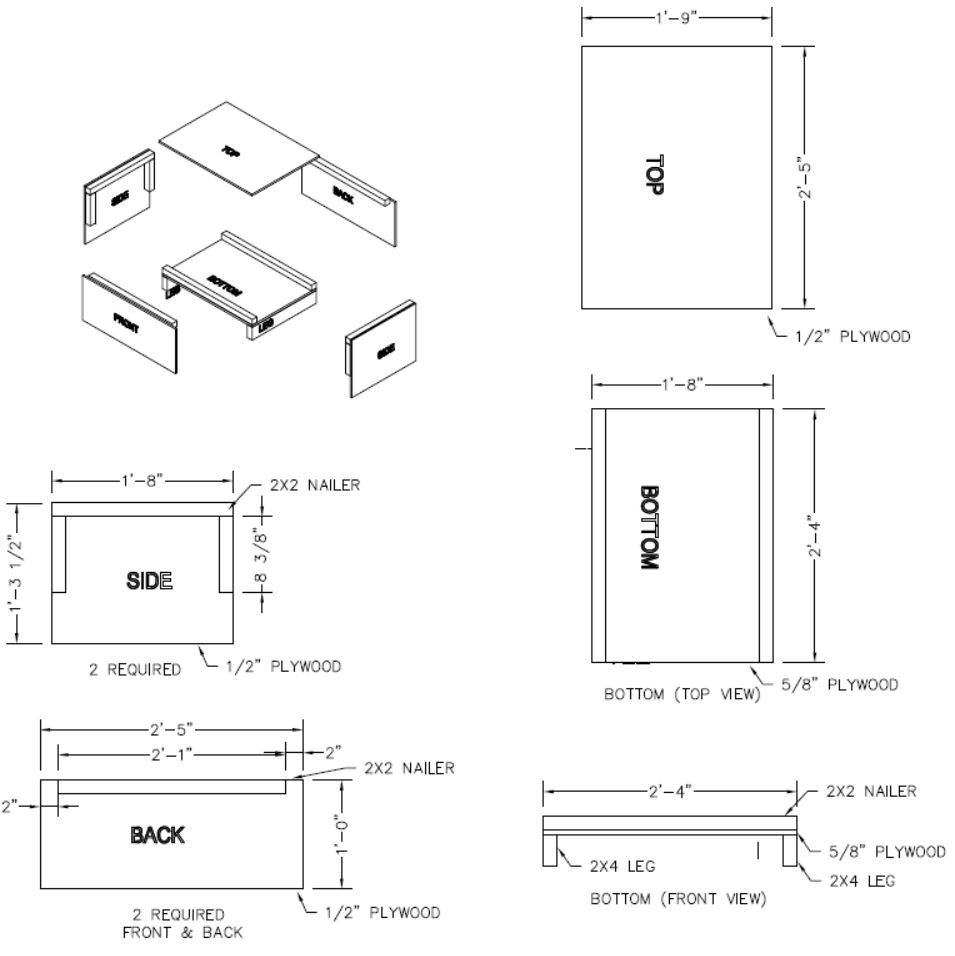

Short Block



  • 1 Top 29x21 (½" plywood)
  • 1 Bottom 28x20 (⅝" plywood)
  • 2 Ends 20x15 (½" plywood)
  • 2 Sides 29x12 (½" plywood)
  • 2 Feet 2x4 wood 20" long

Long Block

  • 1 Top 34½x22 (½" plywood)
  • 1 Bottom 33½x21 (⅝" plywood)
  • 2 Ends 31x21 (½" plywood)
  • 2 Sides 34½x27½ (½" plywood)
  • 2 Feet 2x4 wood 21” long
  • Legs as shown below (⅝" plywood)

Directions for Crate Building

  1. Screw together 2x4's upright at bottom edge of end panels.
    For the short blocks, please lay block on it's side, with the valve chamber facing up!
  2. Screw bottom on top of 2x4's
  3. Screw 1x2's to edge of end panels and edge bottom panel on insides.
  4. Screw sides to 1x2's
  5. Screw 1x2's at to top edge of sides and ends
  6. Set engine in crate, pack to prevent shifting and screw on top.
