Engine Kits

We offer the following engine kits for Model A and Model B:

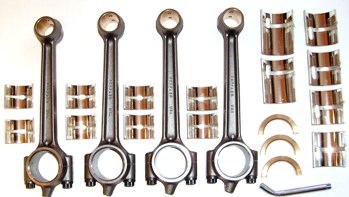

Lower End

  • Rods for use with Model A pistons
  • Model A Kit *Call for pricing*
  • Model B Kit *Call for pricing*

Includes:

  • 4 NEW FORGED CONNECTING RODS
  • 8 CONNECTING ROD BEARINGS
  • 1 SET MAIN BEARINGS
  • 1 SET THRUST WASHERS
  • 1 LARGER REAR MAIN OIL PIPE

Note: Splash or Pressure oiling system. Undersize required to order bearings. See Insert Tech for crankshaft sizes.

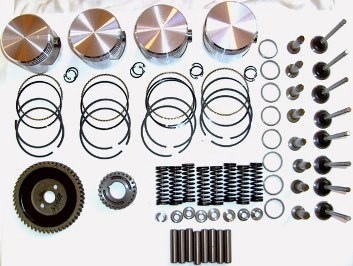

Short Block

  • Rods for use with Model A pistons
  • Model A *Call for pricing*
  • Model B *Call for pricing*

Includes Lower End Kit, plus:

  • 4 PISTONS WITH PINS
  • 1 SET PISTON RINGS
  • 1 SET TIMING GEARS
  • 8 VALVES (Optional: Large intake valves at extra cost)
  • 8 VALVE SPRINGS
  • 8 VALVE GUIDES-1 Piece
  • 8 VALVE SPRING RETAINERS
  • 16 VALVE SPRING KEEPERS
  • 8 VALVE SEATS
  • 8 LIFTERS Adjustable single lock

Long Block

Long block engine kit is all of above plus an Installation kit and new 1-piece pulley. (2-piece pulley available on request.)

  • Model A *Call for pricing*
  • Model B *Call for pricing*

Camshaft  *Currently out of stock*

For added power we offer a new 330 lift camshaft. This is a higher lift camshaft with longer duration than reground camshafts.
USA made.
